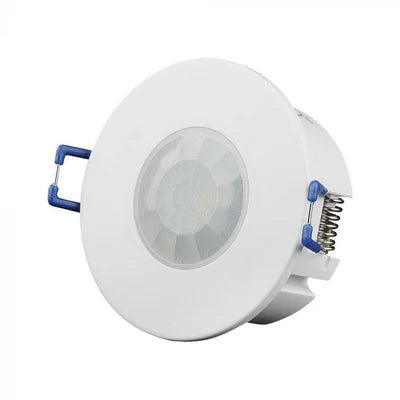

V-Tac VT-81010 COB PIR SENSOR TWO 360° DETECTION RANGE WHITE BODY
Features:
- Infrared motion sensor with integrated circuit can detect heat signatures
- Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
- High quality receptors for instant functioning
- Effective system for energy saving and safety
- Compatible with all V-TAC LED range (Upto 200W)
| IP Rating: | IP20 |
| Dimensions (mm) | 62 Width & 88 Height |
| Input Power | AC:220-240V, 50/60Hz |
| Ean No.: | 3800170219571 |
| Item Colour: | White |
| Time Delay |
Min 10sec±3sec, Max 15min±2min |
| Model: |
VT-81010 |
| Cutting Size | 63 -66mm |
| Rated Load |
Max 600W (LED) |
| Detection angle: | 360 |
| Detecton distance: | Max 8m(<24°C) |
| Detection motion speed: | 0.6-1.5m/s |
| Detection range: | 360 ° |
| Ambient light: | <3-2000LUX(adjustable) |
Specification
Dimensions |
76x75.6mm |
Dimmable |
No |
Ean code |
3800170219571 |
Input voltage |
AC:220-240V, 50/60Hz |
Installation type |
Recessed |
Internal external |
Internal |
Ip rating |
IP20 |
Lighting mechanism |
LED |
Lighting type |
Motion Sensors |
Product type |
Lighting |
Shape |
Round |
Unit colour |
White |
