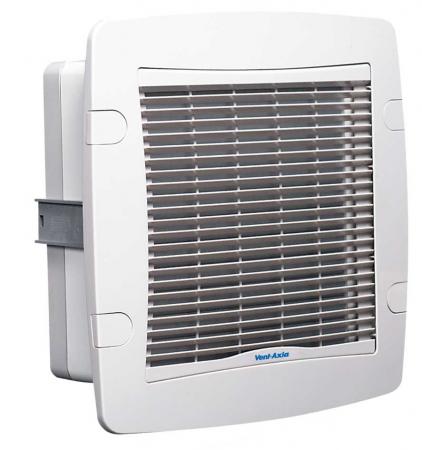

Vent-Axia TX6PL T-Series 6 Inch Panel-Ceiling Fan
- 6" Extract/intake model
- Vent-Axia T-Series Panel/Ceiling models are suitable for mounting at any angle in internal partitions, ceilings, ducts and through external walls
- Only the louvre grille is visible after installaton
- Features a speed control pack enabling 3 preset speed modes
- Patented electronic shutter system ensures quiet, trouble-free operation
- East fit connector top socket- standard on all models for fast and trouble-free mains connection
- May be used in conjuction with T-Series controllers to obtain a choice of speeds, reversible airflow direction and automatic sensor operation
- Operates in ambient temperatures from -40 ͦ C to +50 ͦ C
- Fitted with Standard Thermal Overload Protection (S.T.O.P)
- Supply voltage: 220-240V/1/50Hz
- Colour: soft tone grey
| Extraction rate l/s (m ³/h) | Min | 295 (81) |
| Med | 380 (105) | |
| Max | 435 (120) | |
| Power (w): | 30 | |
| Sound dB(A) @ 3m: | 41 | |
| Amps @ 240V: | 0.24 | |
Specification
Control type |
Standard |
Depth |
32mm |
Enclosure material |
Plastic |
Fan size |
6" |
Fan type |
Axial |
Gtin |
5015135425746 |
Height |
303mm |
Internal external |
Internal |
Mounting options |
Ceiling |
Product type |
Ventilation |
Width |
310mm |
