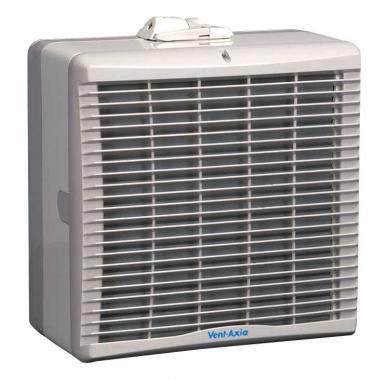

Vent Axia TX6WW T-Series 6 Inch Window Fan
- Traditional T-Series extract/intake window fan-6 inch
- Patented M-Tech motor for improved perfomance, economy and reliability. Operates at any angle
- Speed control pack with low, medium or boost speed options
- Patented electronic shutter system ensures quiet, trouble free operation
- Can be used with the Ecotronic controller for additional functionality
- Shutter open/fan off mode
- Low sound levels
- Easy fit connector Top Socket, standard on all models
- Designed for single or double glazing up to 32mm thick. Greater thicknesses accomodated using extending rods kit
- Easy dismantling when cleaning required
- Suitable for operation in ambient temperatures from-40 ͦ C to +50 ͦ C
- Fitted with Standard Thermal Overload Protection (S.T.O.P.)
- Supply voltage 220-240V/1/50Hz
| Extraction rate l/s (m ³/h) | Min | 245 (68) |
| Med | 315 (88) | |
| Max | 360 (100) | |
| Power: | 30 | |
| Sound dB(A) @ 3m: | 41 | |
| Amps @ 240V: | 0.24 | |
Specification
Control type |
Standard |
Depth |
31mm |
Enclosure material |
Plastic |
Fan size |
6" |
Fan type |
Axial |
Gtin |
5015135425715 |
Height |
220mm |
Internal external |
Internal |
Mounting options |
Window |
Product type |
Ventilation |
Width |
226mm |
