Product Description

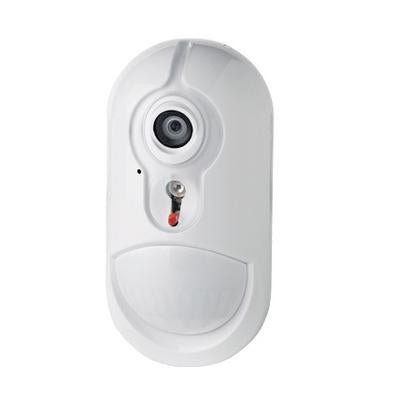

Next CAM PG2 is a two-way, wireless photo detector that provides the perfect solution for visual alarm verification, day or night. This detector is typically installed in areas where extra visibility is needed, such as hallways and stairways. When the alarm system is armed and the PIR sensor detects movement, the detector sends an alert to the control panel and activates the camera. The control panel immediately begins sending images of the premises to the central monitoring station.

Product Details

• Enables real-time visual alarm verification, day and night, for central monitoring stations

• Sends full color, high-resolution images from the premises via GPRS channels

• CMOS camera with IR illumination - operates also in total darkness

• Instant capture – ensures image recordings start immediately

• Camera range: 12m (40ft); with IR illumination 10m (33ft)

• No vertical adjustment needed

• Auto-setup for brightness and contrast via the control panel

• Longer battery life - 3-5 years in typical use (depending on battery type)

• Battery compartment for easy battery replacement

• Installer-friendly – adjustment-free installation

• Front cover and back tamper

• Advanced True Motion Recognition (TMR) algorithm (patented) distinguishes between an intruder and other disturbances that can cause false alarms

• Uses revolutionary PowerG technology
  • Frequency Hopping Spread Spectrum (FHSS) technology – Provides military-grade robustness and reliability
  • Full, two-way, synchronized TDMA wireless network – Streamlines communication and increases channel efficiency
  • Highly-secure AES-128 encrypted wireless communication – Surpasses the most demanding industry standard
  • Cost-effective with extremely low power consumption

• Dimensions: 125 x 63 x 60mm

Camera Specifications

• Camera type: CMOS

• Camera range: 12m (40ft) in daytime; 10m (33ft) in complete darkness

• Color & resolution: Color/B&W: QVGA (320 x 240 pixels) QQVGA (160 x 120 pixels)

• Frame rate: Up to 2 frames per second

• Camera angle: Wide angle 90 °

• Camera response: Instant capture functionality
