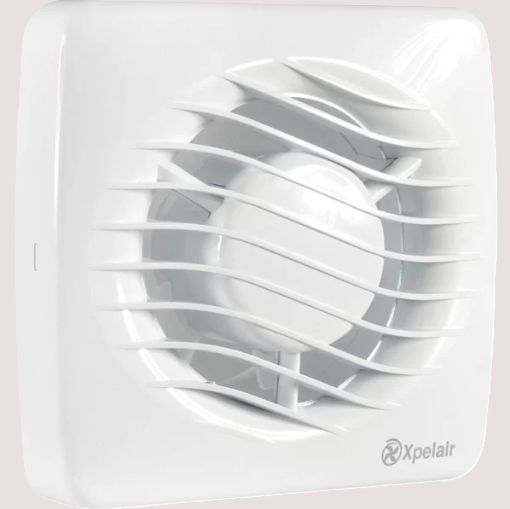

Xpelair LV100 (90845AW) 100mm/4" Lo Voltage Toilet/Bathroom Fan
Key Features
- Single speed SELV 100mm (4”) axial fans with remote transformer
- Maximum fan performance 24 l/s
- Lubricated for life motors with thermal cut-out protection
- Clip-off front cover for ease of cleaning
- Fan units are IPX5 rated
- BEAB approved
Technical Information
| Reference number | 90845AW |
| Extract performance (FID, m³/h) | 85 |
| Extract performance (FID, l/s) | 24 |
| Sound pressure level (dB(A)@3m) | 37 |
| Electrical power rating (W) | 13 |
| IP rating | IPX5 |
| Weight (kg) | 2.2 |
| Dimensions | |
| Fan (mm) | 165W x 155H x 43Proj |
| Transformer (mm) | 163W x 87.5H x 19Proj |
LV100 12V Safety Extra Low Voltage (SELV) fans offer complete peace of mind as they are specifically designed to be installed directly in or over the splash area zone 1 in complete safety.
All models are supplied with a 12V SELV transformer which is sited out of reach of any person using the bath or shower. All models come complete with a universal fitting kit suitable for wall, ceiling or window mounting (in single glazing up to 6mm) applications. The kit includes an air operated backdraught shutter
The LV100 range conforms to Building Regulations’ mechanical ventilation for
toilets and bathrooms
Specification
Control type |
Standard |
Depth |
75mm |
Enclosure material |
Plastic |
Fan size |
4" |
Fan type |
Axial |
Height |
163mm |
Internal external |
Internal |
Mounting options |
Wall;Panel |
Product type |
Ventilation |
Width |
163mm |
