Product Details

• Ratings per: IEC/EN 60998

• Nominal voltage: (II/2) 450 V

• Rated surge voltage: (II/2) 4 kV

• Rated current: 24A

• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

• Approvals per: UL 486C

• Bemessungsspannung: UL 600 V

• Bemessungsstrom: UL 20 A

• Connection technology: PUSH WIRE®

• Actuation type: Push-in

• Connectable conductor materials: Copper, Aluminum

• Solid conductor: 0.5 … 2.5 mm² / 20 … 16 AWG

• Strip length: 11 mm / 0.43 inch

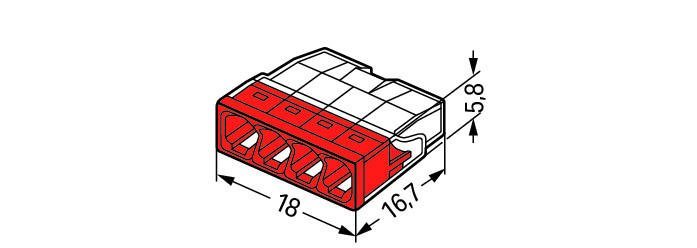

• Dimensions:
  • Width: 18 mm / 0.709 inch
  • Height: 5.8 mm / 0.228 inch
  • Depth: 16.7 mm / 0.657 inch

• Color: transparent

• Cover color: red

• Flammability class per UL94: V2

• Fire load: 0.025 MJ

• Weight: 1.3 g
