Wago Connector Push-Wire 2 Conductor for J-Boxes (773-102) - Box of 100
- Ratings per: IEC/EN 60664-1
- Nominal voltage: (II/2) 400 V
- Rated surge voltage: (II/2) 4 kV
- Rated current: 24 A
- Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
- Connection technology PUSH WIRE®
- Actuation type Push-in
- Connectable conductor materials Copper Aluminum Copper Aluminum
- Solid conductor 0.75 … 2.5 mm² / 18 … 12 AWG
- Stranded conductor 1.5 … 2.5 mm² / 16 … 12 AWG

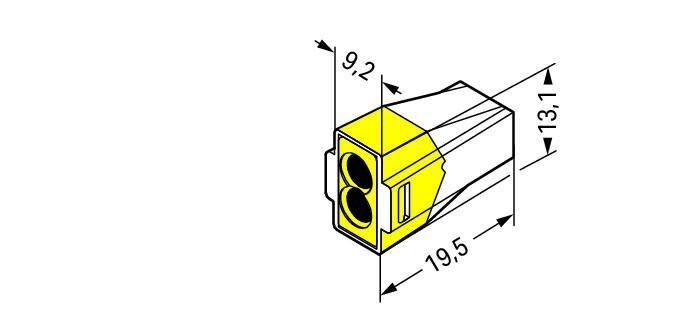

- Width: 9.2 mm / 0.362 inch
- Height: 13.1 mm / 0.516 inch
- Depth: 19.5 mm / 0.768 inch
- Color multicoloured
- Flammability class per UL94 V2
- Fire load 0.037 MJ
- Weight 1.6 g
Specification
Box quantity |
100 |
Connector type |
Push |
Gtin |
4044918397537 |
Number of incoming ways |
2 |
Product type |
Connectors |
