Product Details:

Material : Polycarbonate

Material sealing gasket : PU

Temp. range min : -30 °C

Temp. range max : 100 °C

Temperatures during install. : -5 °C - 60 °C

Protection class : IP66 / IP67

Glow wire test : 960 °C

Voltage : 690 V

Rated cross section : 16 mm²

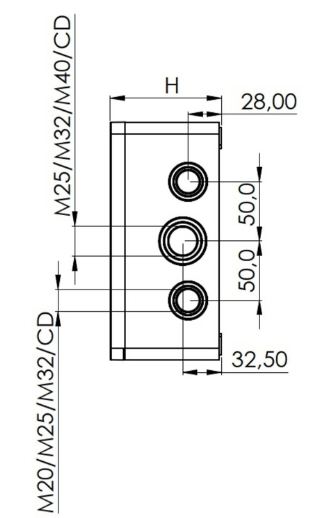

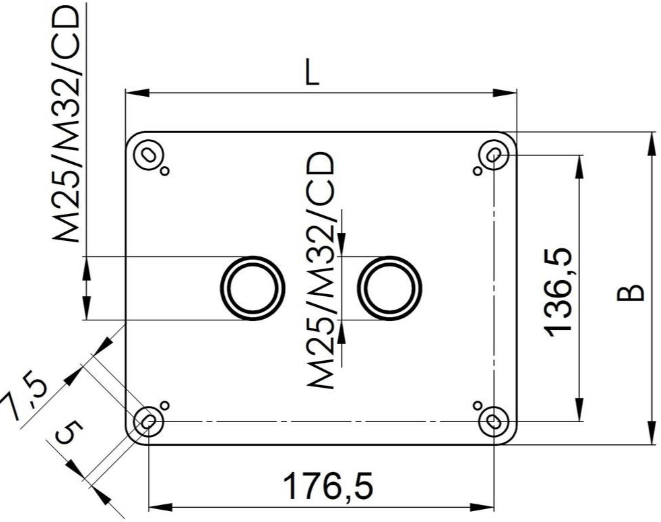

External dimensions LxWxH : 200 x 160 x 94 mm

Product Color : RAL 9005

Order no. RAL 9005 : 10110739

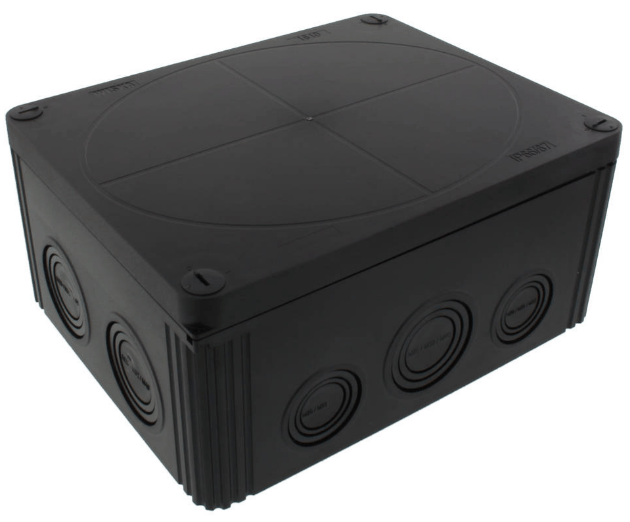

Type : COMBI 1610 BK

Packing unit : 1

Tariff number : 39269097
