Product Details:

Material : Polypropylene

Material sealing gasket : TPE

Temp. range min : -30 °C

Temp. range max : 100 °C

Temperatures during install. : -5 °C - 60 °C

Protection class : IP66 / IP67

Glow wire test : 750 °C

Voltage : 400 V

Rated cross section : 1,5 mm²

Fixing : 4 internal openings

Ø cable diameter min : 3 mm

Ø cable diameter max : 12 mm

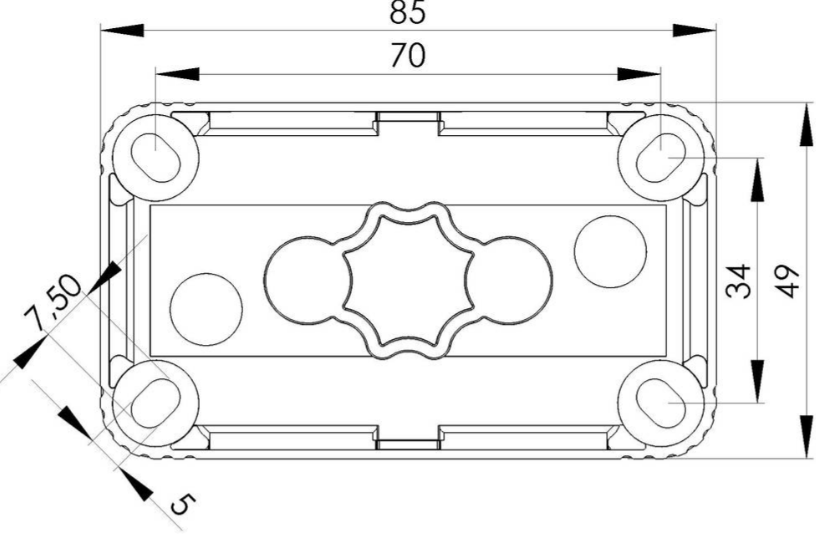

External dimensions LxWxH : 85 x 49 x 51mm

Product Color : RAL 7035

WISKA-Order no. : 10109569

Type : COMBI 206 LG

Packing unit : 10

Tariff number : 39269097
