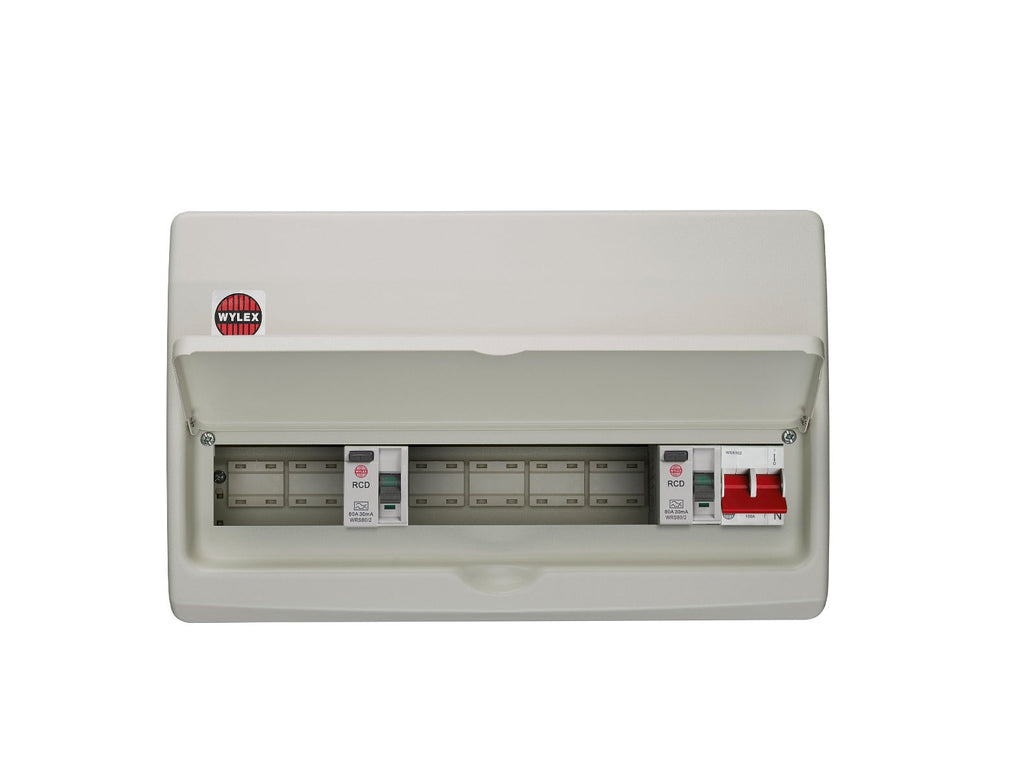

Wylex NMXISS12P 12 Way Dual RCD Consumer Unit (Plain Sides) 100A Main Switch, 80A 30mA RCDs, Flexible Configuration
- 12 Way Dual RCD Consumer Unit
- 100A Main Switch
- Curved metal enclosure with plain sides
- Configurable fixed busbar
- 12W Dual RCD
- 2x 80A 30mA type A RCDs
- DIN rail supplied
- Low smoke & fume paint
- Cable entry knockouts on all sides and rear
- Dimensions (HxWxD): 235mm x 372mm x 125mm
Specification
Consumer unit type |
Dual RCD |
Depth |
125mm |
Enclosure material |
Metal |
Flexible configuration |
Yes |
Gtin |
5013601097497 |
Height |
235mm |
Number of incoming ways |
12 |
Populated |
Partially Populated |
Product type |
Consumer Units and Enclosures |
Regulatory |
BS EN 61439-3 |
Width |
372mm |
