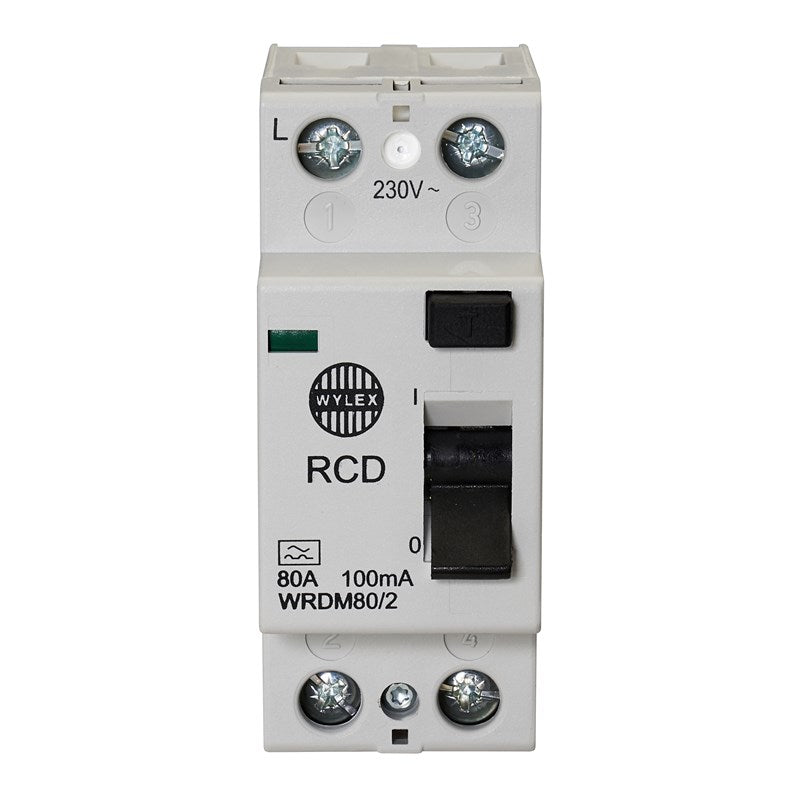

Wylex WRDM80-2 80A, 100mA DP Type A RCD
PRODUCT DETAILS
- Number of poles: 2
- Rated voltage: 230 V
- Rated current: 80 A
- Rated fault current: 0.1 A
- Rated insulation voltage Ui: 400 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mounting method: DIN rail
- Leakage current type: A
- Selective protection: No
- Frequency: 50 Hz
- Additional equipment possible: No
- With interlocking device: No
- Degree of protection (IP): IP20
- Width in number of modular spacings: 2
- Connectable conductor cross section multi-wired: 35 mm²
- Product Standard/s: BS EN 61008
Specification
Amps ii |
80 |
Gtin |
5013601017518 |
Product type |
RCD Units |
Regulatory |
BS EN 61008-1, BS EN 61009-1 |
Unit colour |
Grey |
