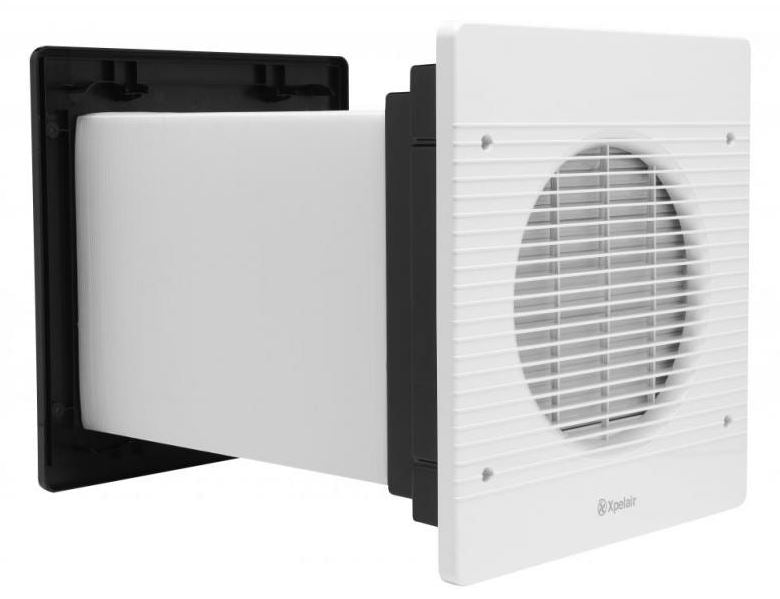

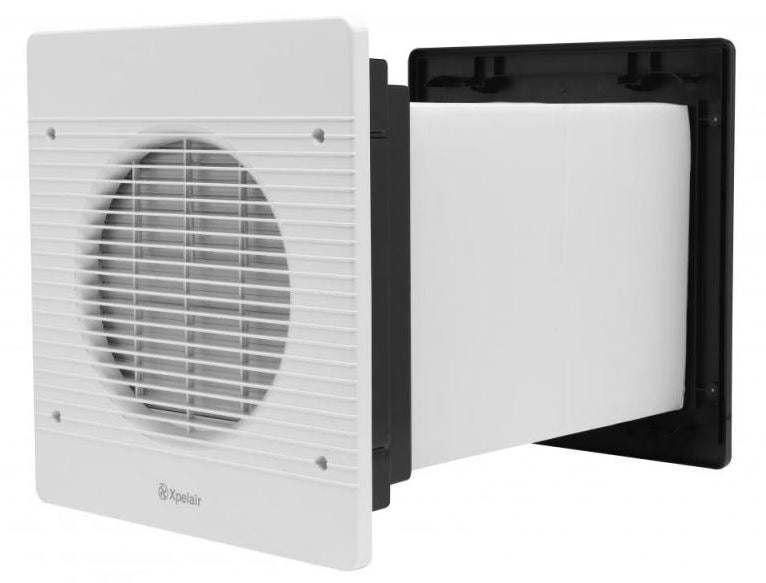

WX9 is an intake / extract wall fan suitable for installations in pubs, restaurants, offices, kitchens, factories, schools and shops.

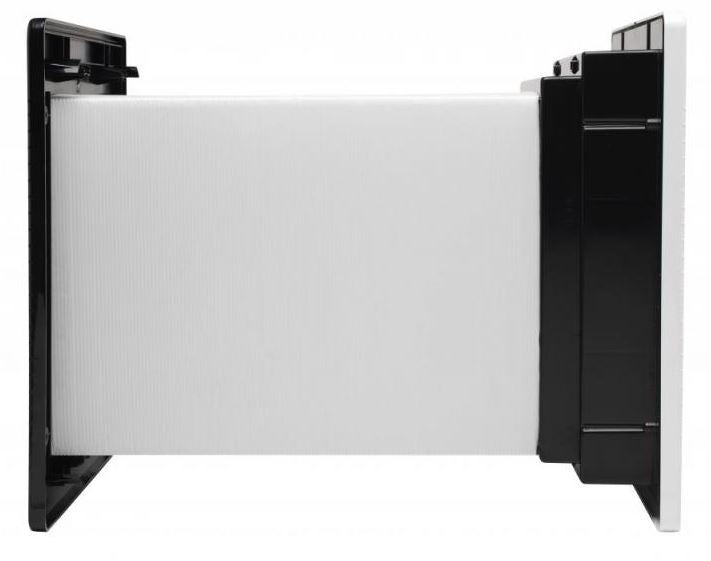

The fan comes complete with a corrugated plastic wall liner and is suitable for installations of wall thickness  275 to 375mm.

WX9 has a 2 speed extract rate of 600 & 693 m3/hr and a 2 speed intake rate of 418 & 459 m3/hr. Reversing the fan is achieved with a FR22/30 controller.

The fan includes a silent integral electro-thermal shutter to prevent backdraughts.

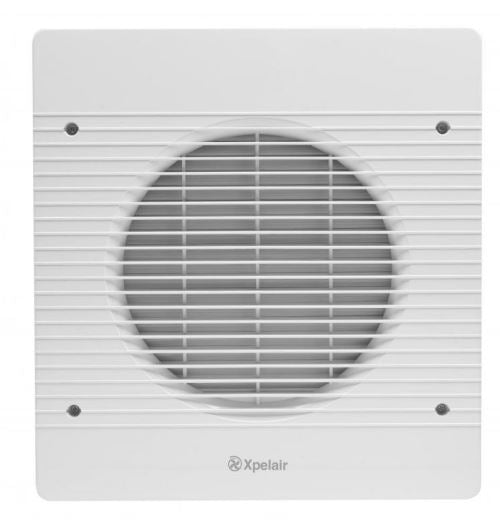

For safety, a finger-guard is integrated into the ultra-slim high gloss ABS fascia and the exterior wall grille design. The fan includes a positive plug and socket assembly provides a means of isolation.

Technical Specifications:

• Protection (IPX) Rating : IPX4
• Product Model Number : WX9
• Warranty / Guarantee : 2 years

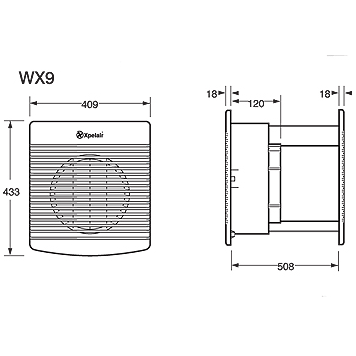

• Depth : 180.00
• Height : 512.00
• Width : 432.00
• Length : 375
• Weight : 5.57
• Colour/Finish/Material : White / Glossy / ABS
• Humidistat Type : No
• IP Rating : 4
• Timer : No
